基本資料

型號編碼

0145010372

型號全稱

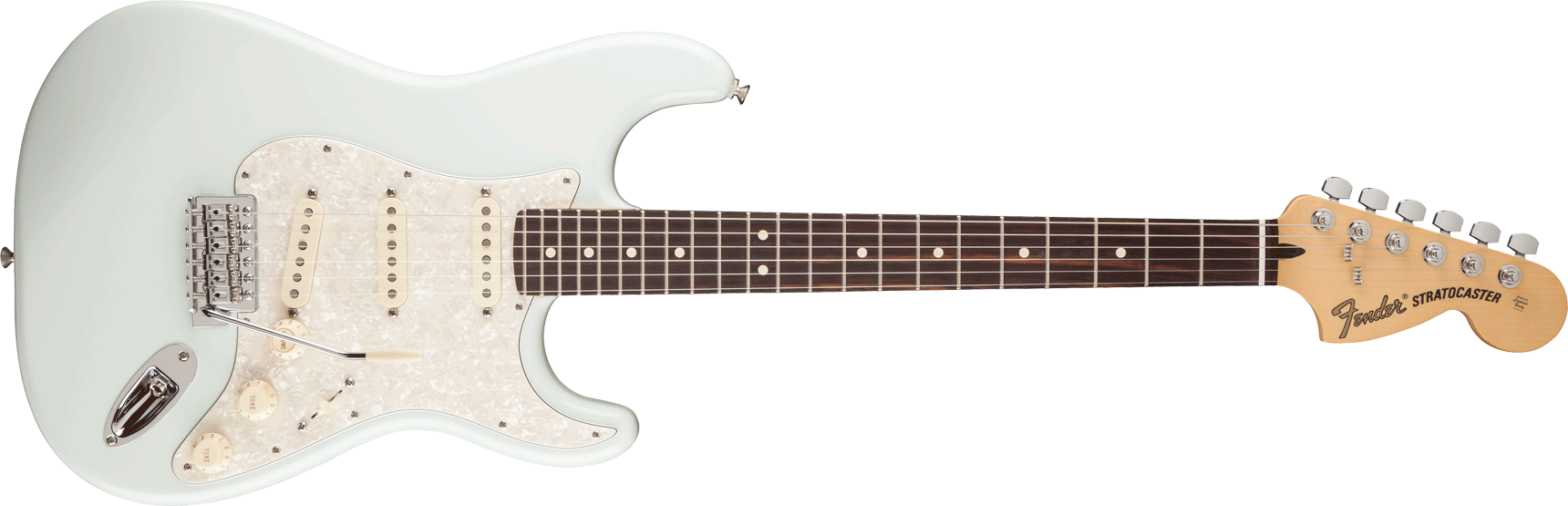

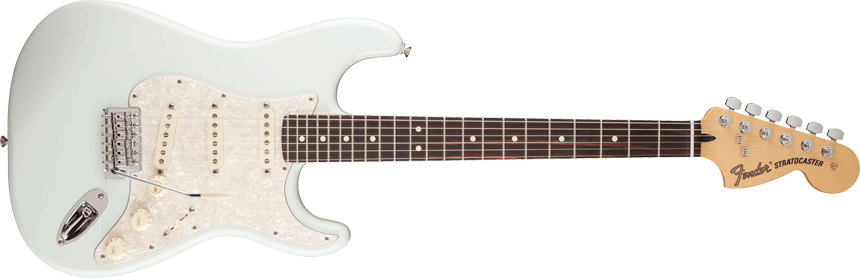

Deluxe Roadhouse Stratocaster

系列

Deluxe

顏色

Sonic Blue

琴身

琴身材料

Alder

琴身漆面

Gloss Polyester

琴身輪廓

Stratocaster

琴頸

琴頸材料

Maple

琴頸漆面

Gloss Urethane

琴頸輪廓

Modern "C"

有效弦長

25.5" (648 mm)

指板

Rosewood

指板半徑

9.5" (241 mm)

品數

22

品絲規格

Medium Jumbo

弦枕

Synthetic Bone

弦枕寬度

1.650" (42 mm)

品記

Black or White Dot

調節桿螺母

3/16" Hex Adjustment

琴頸金屬板

4-Bolt Standard

電路系統

琴橋拾音器

Texas Special Single-Coil Strat

中部拾音器

Texas Special Single-Coil Strat

琴頸拾音器

Texas Special Single-Coil Strat

控制系統

Master Volume, Master 6-Position V6 Rotary Tone Switch, Master Tone

拾音器切換開關

5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

拾音器配置

SSS

特殊電路系統

The 6-position V6 rotary switch utilizes the onboard preamp to provide 6 distinct tone settings ranging from wiry single-coil to scorching lead. The S-1 Switch bypasses the preamp completely.

硬件

琴橋

Vintage-Style Synchronized Tremolo

硬件表面

Chrome

搖把把手

Vintage-Style Tremolo Arm

弦鈕

Standard Cast/Sealed

護板

4-Ply Aged White Pearloid

控制旋鈕

Aged White Plastic

檔位帽

Aged White

其它

琴弦

Fender USA, NPS, (.009-.042 Gauges)

特點

Onboard Preamp with Rear Mounted Battery Compartment, Large '70s Style Strat Headstock and Logo Decal, Dual Wing String Trees, Lightly Tinted Neck
